Specifications:
Laser Power: 20W/ 30W/ 50W/100W Laser Wavelength: 1064 nm
Laser Frequency: 30-60 kHz
Pulse Width: 80-120 ns
Field Lens Focal Length: 9.3 in. (210 mm)
20W Processing Area: 4.3 x 4.3 in. (110 x 110 mm)
30W/ 50W Processing Area: 5.9 x 5.9 in. (150 x 150 mm,less than 300mm)
Max. Engraving Speed: 393.7 ips (10,000 mm/s)
Max. Engraving Depth: 0.04mm~0.1mm
Positioning Accuracy: ±0.04 in. (±1 mm)
Marking Accuracy: ±0.0004 in. (±0.01 mm)
Est. Laser Service Life (MTTF): 100,000 hr.
Operating Temp.: 32-104°F (0-40°C)
Operating Software: EzCad2 for Windows 7, 8, 10, & 11
Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif
Product Dimensions (L*W*H): 55.5*33.5*72cm / 21.8*13.2*28.3 in.
Net Weight: 28kg / 62 lb.
Package Dimensions (L*W*H): 77*46*57cm / 30.3 x 18.1 x 22.5in.
Package Weight: 55kg / 121lb.
Package List:
1x Control Box with Laser Arm
1x Support Column
1x Power Cord
1x USB Flash Drive
1x Hex Wrench Set
1x Installation Screw Set
1x Pair of Safety Goggles
1x Screwdriver
1x ManualDetails:

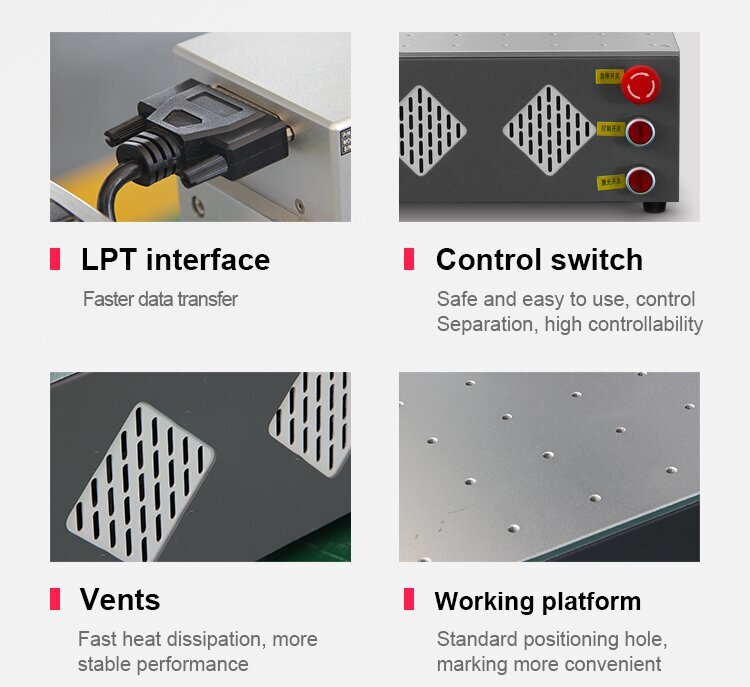

Product details:
Samples
This fiber laser marking machine is mainly suitable for marking on almost all metal materials, including stainless steel, carbon steel, aluminum alloy, copper, brass, galvanized steel, iron, gold, silver and other precious metals. It can also mark some dark engineering plastics, ABS, nylon, bakelite and other non-metallic materials. It is widely used in hardware, electronics, auto parts, bearings, molds, jewelry and other industries.
FAQ
1. What materials can a fiber laser marking machine mark?
Fiber laser markers are mainly used for all metal materials, including stainless steel, carbon steel, aluminum, copper, brass, galvanized steel, iron, gold, silver, and other plated or alloy metals. They can also mark some dark engineering plastics such as ABS, nylon, PBT, and bakelite.
2. What is the difference between fiber, CO2, and UV laser markers?
– Fiber Laser: Best for metals and some hard plastics.
– CO2 Laser: For non-metals such as wood, leather, acrylic, paper, and cloth.
– UV Laser: For high-precision marking on glass, ceramics, and transparent plastics.
3. Will the laser marking fade over time?
No. Laser marking creates a permanent, permanent etching on the material surface. It is wear-resistant, high-temperature resistant, scratch-proof, and will never fall off or fade.
4. Does the machine need consumables?
No ink, solvent, or ribbon is required. The machine has almost zero consumables and only needs electricity, resulting in very low operating costs.
5. How fast is the marking speed?
Fiber laser markers feature high speed and high efficiency — several times faster than traditional printing, engraving, or stamping methods. They are ideal for mass production lines.
6. Can it mark logos, QR codes, and serial numbers?
Yes. The machine supports logo, image, text, barcode, QR code, and variable data (serial numbers, date codes, database files).
7. What software does the machine use?
Most models use EZCAD LightBurn or BSL Mark software, which supports multiple file formats (AI, DXF, PLT, PNG, JPG) and is easy to learn and operate.
8. What are the size and weight of the machine?
Standard desktop fiber laser marker:
– Size: 78cm × 45cm × 57cm
– Net Weight: 55kg
Portable and cabinet models are also available.
9. How long is the warranty?
– 1-year warranty for the whole machine
– 2–3 years for the laser source
– Lifetime technical support and maintenance
10. What if I don’t know how to operate it?
We provide a complete user manual, video tutorials, and remote online guidance. The operation is simple and can be mastered within 30 minutes.
11. Do you provide technical support after purchase?
Yes. We offer lifelong free technical support, including software installation, parameter setting, troubleshooting, and online training.
12. Can the machine run 24 hours continuously?
Yes. Industrial-grade fiber laser sources support long-term stable operation, suitable for factory and industrial production environments.
